e3 Porcelain-Enamel Steel · Series 1000–3500 · CSI Division 10 11 00

Traditional writing surfaces for educational, commercial, and collaborative spaces, with a durable matte porcelain-enamel steel finish.

Request a Quote Product Data (PDF)
Product Highlights Construction Quick Links
Porcelain-enamel steel surface with a durable matte writing finish.
Magnetic surface supports both writing and display use.
Custom sizes up to 5'-0" high and 16'-0" wide.
Clear anodized extruded aluminum frame.
e3 porcelain on 1/2" particle board core.
0.005" moisture-resistant aluminum backer standard; 0.015" optional.
Satin clear anodized trim, tray, and 1" or 2" natural cork map rail.
Joint options for boards over 16': spline joint, H-bar, or divider bar.
Downloads & Resources
→
Options & Finishes
→
Specifications
→
Chalkboards ‹ ›

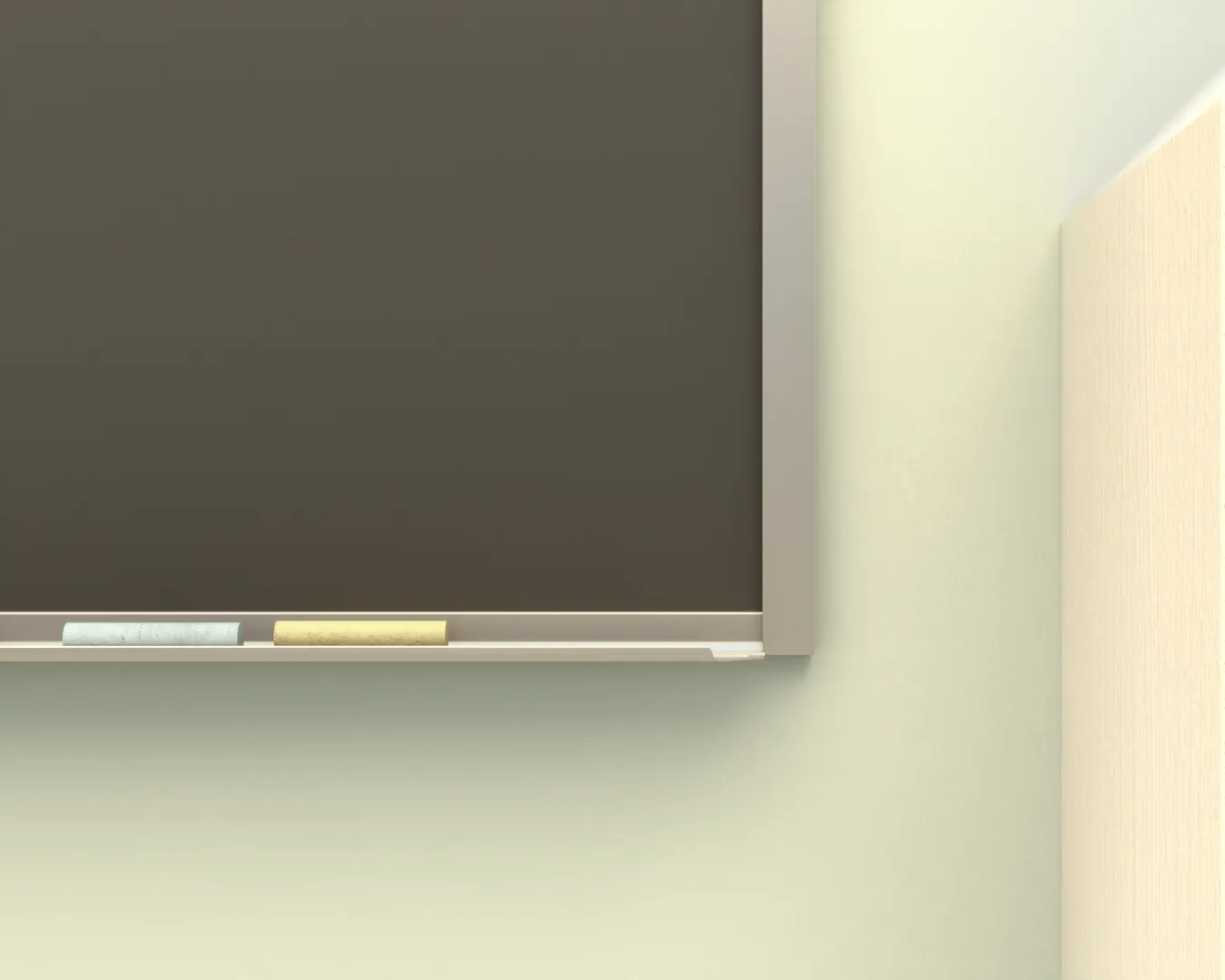

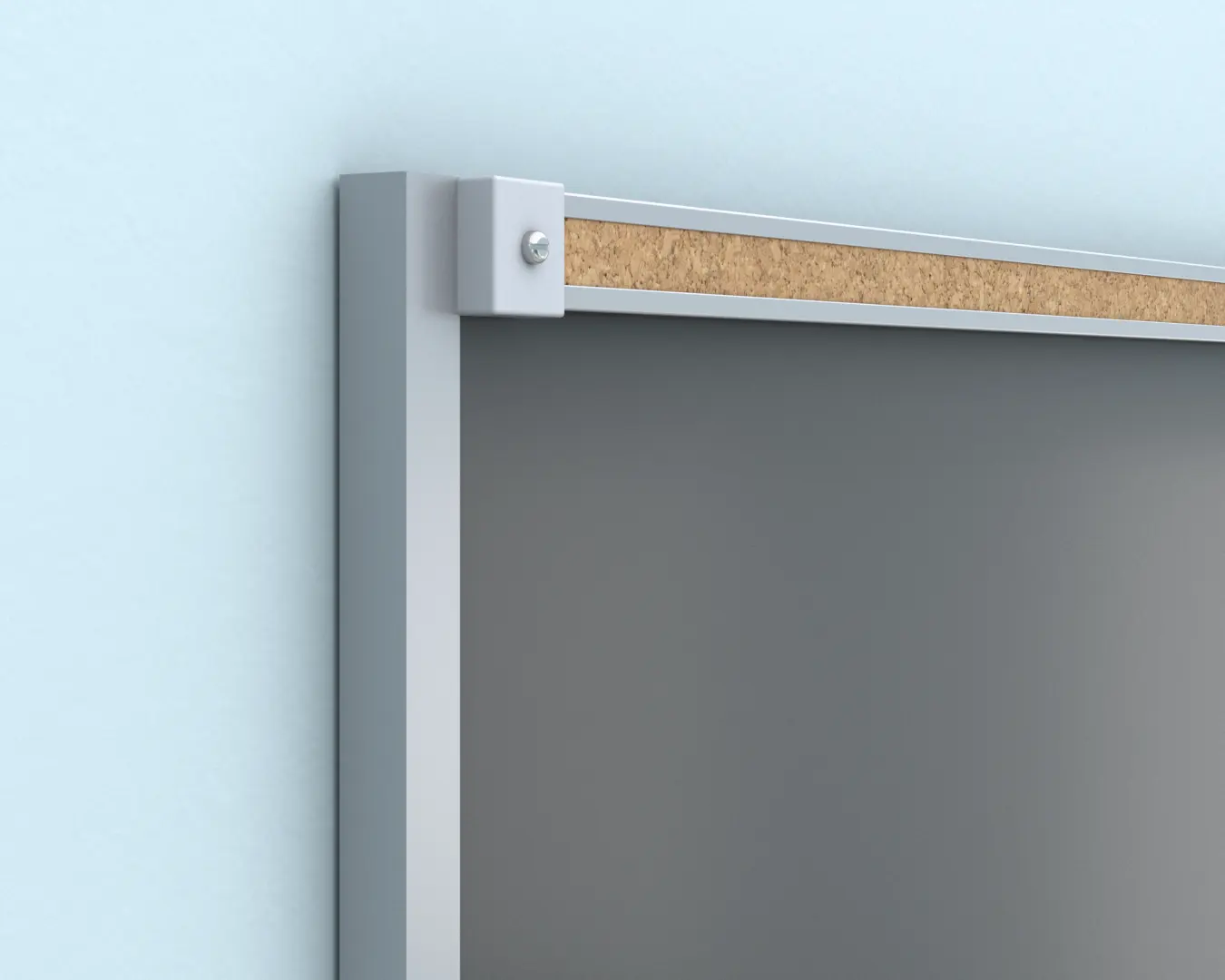

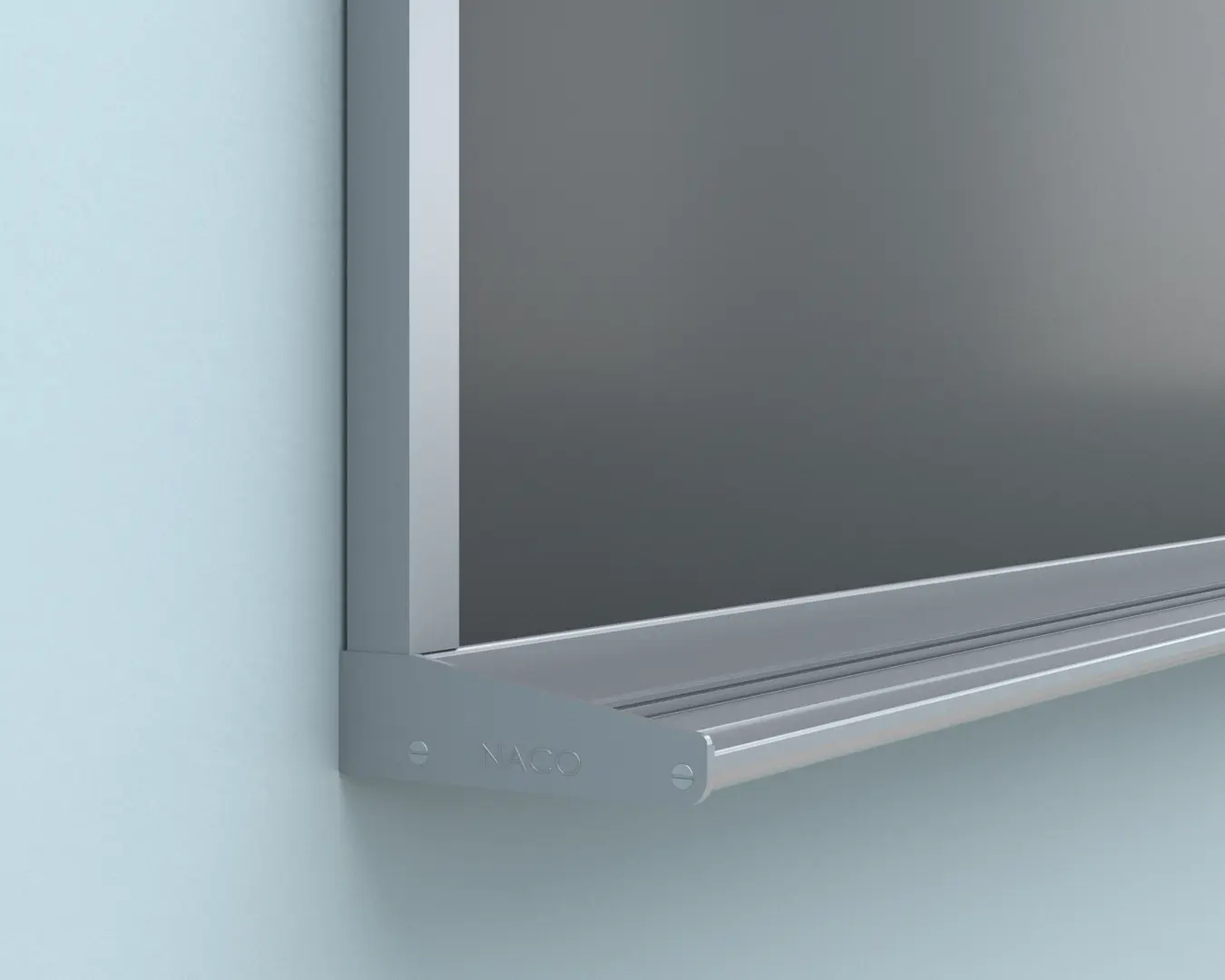

Chalkboards view 1 Chalkboards view 2 Chalkboards view 3 Chalkboards view 4
Resources

Product Support

Data sheets list construction, finishes, and face options for each series. Official shop drawings are provided in the submittal packet.

Catalog & Technical Library
+
2026 Product Catalog — Chalkboards
PDF · p. 14
CAD, BIM, specifications & installation guides
Technical Library →
Shop Drawings
+

Official shop drawings are provided in the submittal packet for each project.

Options

Options & Finishes

Chalkboard Colors

GreenMatte
BlackMatte
GrayMatte
Specifications

Series & Configurations

Each series pairs a tray style with a trim profile. Custom sizes and configurations are available.

Series
Tray
Trim
Data Sheet
1000
Standard (Blade) Tray
C4 · 3/4" face
Download PDF ↓
1500
Standard (Blade) Tray
C18 · 1-1/4" face
Download PDF ↓
2000
Box Tray
C4 · 3/4" face
Download PDF ↓
2500
Box Tray
C18 · 1-1/4" face
Download PDF ↓
3000
Traditional Box Tray
C4 · 3/4" face
Download PDF ↓
3500
Traditional Box Tray
C18 · 1-1/4" face
Download PDF ↓
Key Features

Built to Perform.

01

Porcelain-Enamel Steel Surface

Durable matte writing finish.

02

Magnetic Surface

Supports both writing and display use.

03

Custom Sizes

Up to 5'-0" high and 16'-0" wide.

04

Clear Anodized Frame

Extruded aluminum construction.
